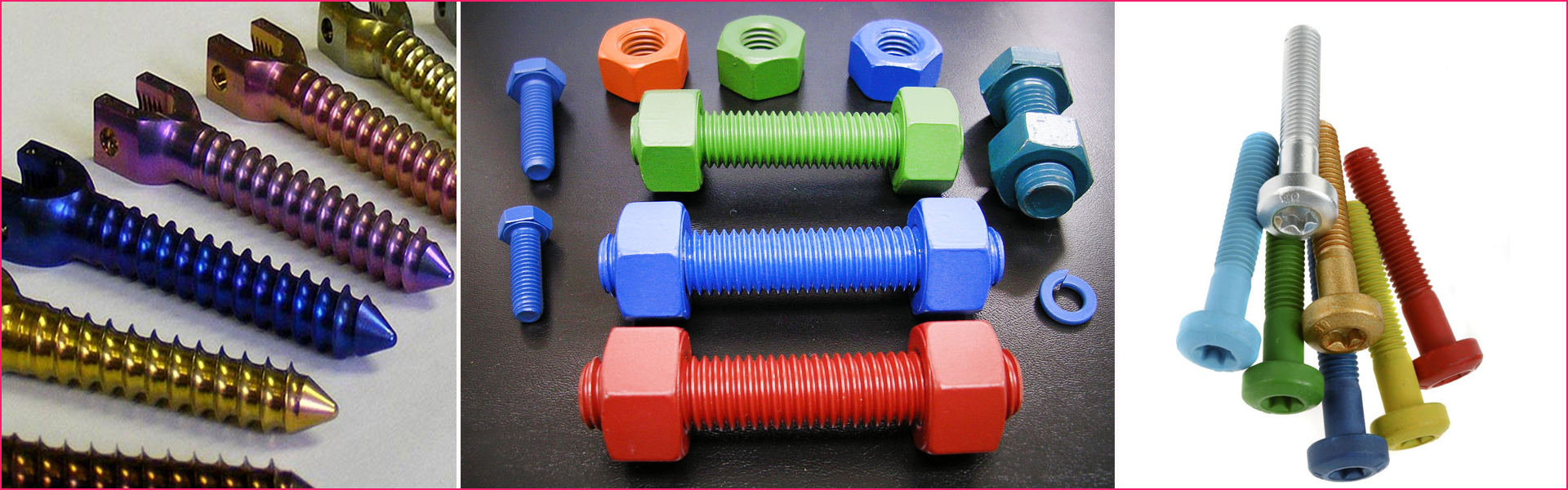

Xylan is a Whitford’s Products and it composites of Fluoropolymers & Reinforcing Binder Resins . The thin coating achieves from Dip&Spin or Spray Process . Base preparations is Phosphating or Blasting or Plating . Xylan coating achieves a protective effect of several hundred hours against base metal corrosion in Neutral salt spray test as per ISO 9227 or ASTM B117.

FEATURES

Xylan Coating afford Low VOC coating and Eco-friendly water based coatings . Excellent Resistance UV –rays , Nuclear Radiations . High performance in Mould release properties. Designed to Paper Transfer Roller in copy machine. Applied Zinc phosphating up to 800 Hours SST per ASTM B117 and Zinc Plating up 1800 Hours SST as per ASTN B117.

APPLICATIONS

Consumer, Industrial Automotive , Off-shore oil industry , Heavy Engineering , Water/waste water Industry , textiles ,Commercial back ware & Textiles

ADVANTAGES

Low Friction: COF. As low as 0.02. Wear resistance under extreme pressure . Corrosion , Chemical & Weather Resistance in any environments. Wide Operating Temperature range : - 420 ° F to 550 ° F Variety of colours available. Excellent adhesion metals ,Plastics & Ceramics. 650 hours of salt spray.

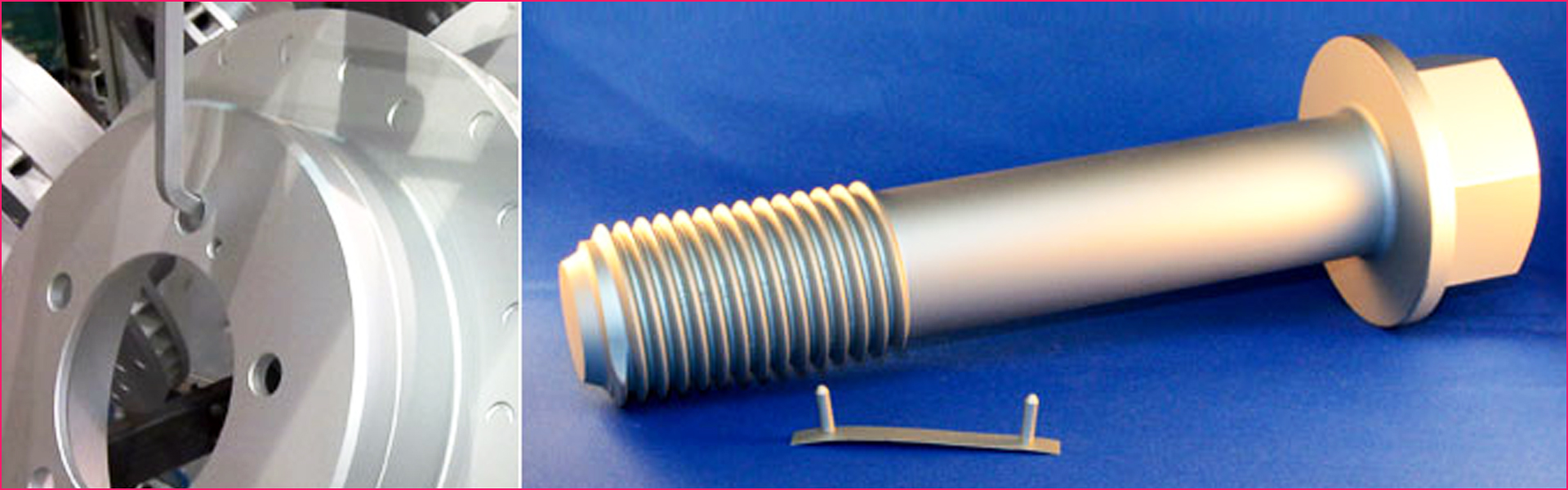

The functions of the very thin flake coating consisting of numerous small flakes and coating Is combination for Zinc & Aluminium lamella(ISO-10683),bound together via an inorganic matrix. The thin flake coating achieves a protective effect of several thousand hours against base metal corrosion in Neutral salt spray test as per ISO 9227 or ASTM B117.

FEATURES

A Zinc Aluminium flake comprises a base coat and a topcoat. Both combination enables to be set to specific coefficient of friction and specific chemical resistance. Thin coating properties make it suited for bolds & screws with metric threads high fitting accuracy.

APPLICATIONS

Automotive Sector, Construction machine & wind Energy. Micro small parts.

ADVANTAGES

No risk of Hydrogen-Induced stress corrosion cracking well-suited for High-tensile steel. Specifically designed for joints containing aluminium i.e., friction, bimetallic corrosion Variety of colours available. Coatings capable of withstanding temperatures up to 650ºC.

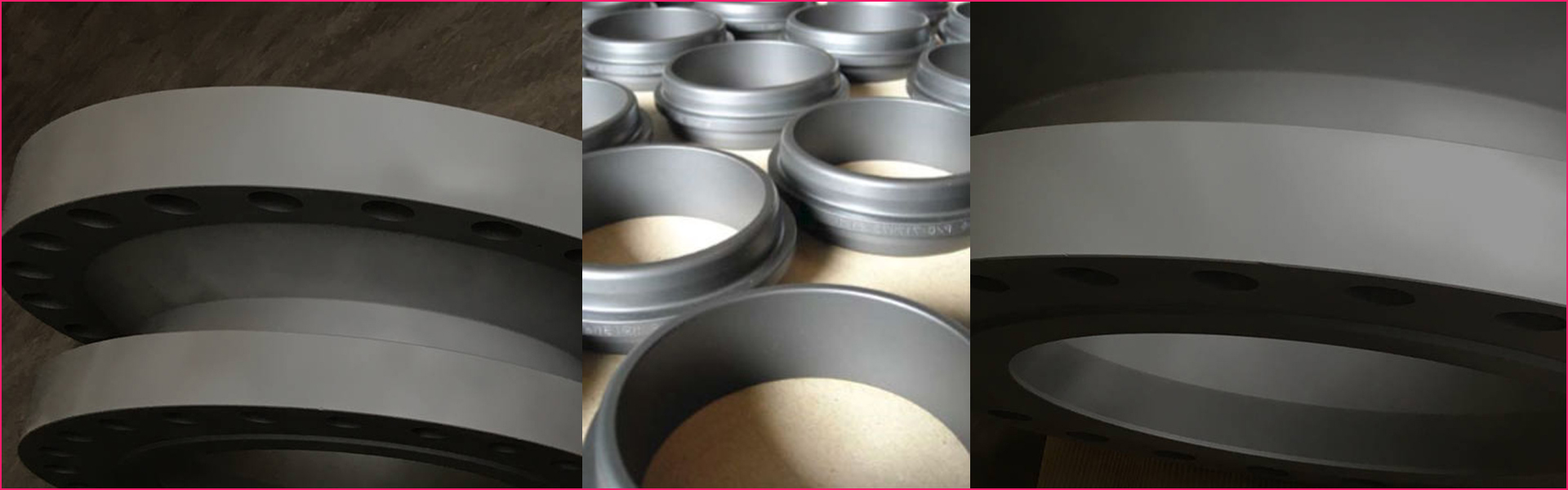

MoS₂ coating is composites of Molybdenum di Sulphide & Reinforcing Binder Resins . The thin coating achieves from Dip&Spin or Spray Process . Base preparations is Phosphating or Blasting. Dry film lubricants are an attractive to fluid lubricants for minimizing friction and preventing seizing and galling of industrial components

FEATURES

MoS₂ coating is high Load caring capacity With Excellent lubricated dry film resist pickup Dust or other harmful contamination. Reduce risk of seizure & excellent adhesion of base Metal .

APPLICATIONS

Bearings . Chains , Gears & Sprockets , Oil field connectors and coupling ,Threaded components Industrial gas Turbines, Aerospace & Articulated Truck Components

ADVANTAGES

Moly dry film lubricant provides friction production in High Load bearing can maintain Lubricant qualities up to 250000 psi. Corrosion & Wear Resistance in any environments. Wide Operating Temperature range : - 320 ° F to 420 ° F 250 hours of salt spray test

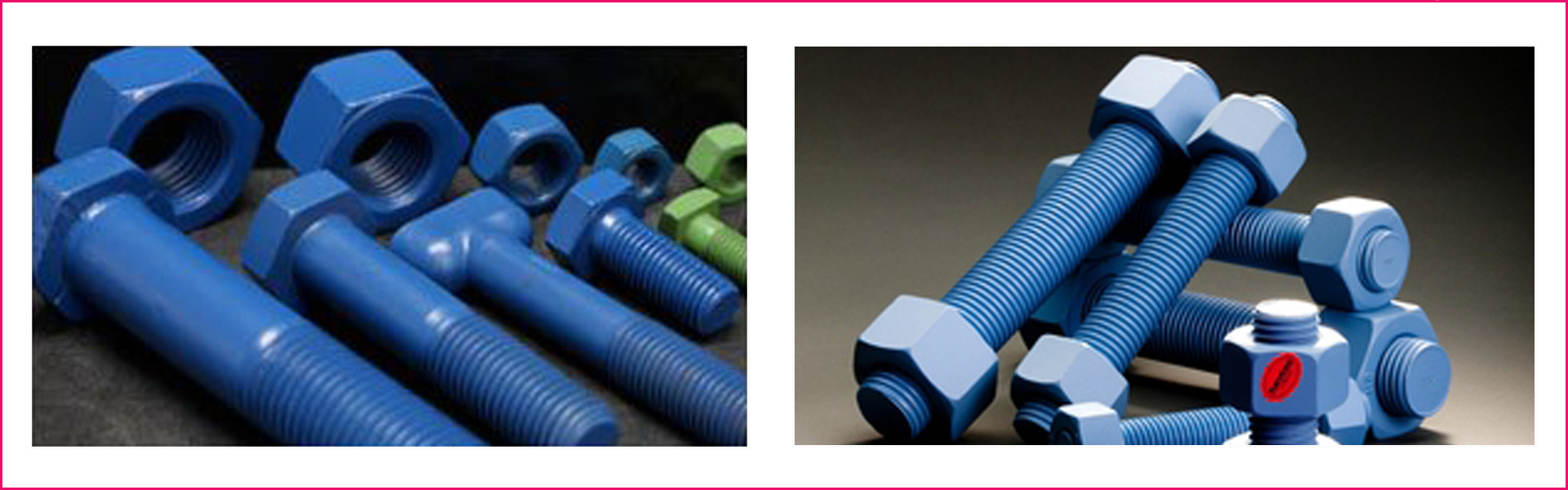

Rilsan is a thermoplastic and it has different features than other commonly used industrial coatings, thermosetting -epoxy, polyester. During the coating process Rilsan does not reticulate, instead, there is a fusion onto the substrate to be coated. The special feature which allows an easy quality control of the coating because melting can be observed by naked eye, while thermosetting involve a chemical reaction and thus, it has to be complete to reach the expected coating quality.

The thermosetting are hard coatings but more fragile and less resistant to abrasion and wear than thermoplastics. It has a density between 104 and 125 g/ml, lower than other powder coatings – epoxy, polyester- which entails a higher performance and an easier control of the coating thickness.

FEATURES

• Outstanding corrosion resistance Sliding surface – low friction coefficient Noise and vibration reduction
• Wear resistance Easy cleaning
• Resistance to commonly used cleaning and disinfection agents Resistance to corrosive industrial environments
• Resistance to sea environments – contact to sea water and brine Outdoor exposure – UV resistance
• Thermal insulation Electric insulation

APPLICATIONS

Automotive & Transport Water fittings & piping Pumps & Valves Outdoor furniture Medical devices & Hospital furniture Micro small parts Food sector

ADVANTAGES

• Abrasion resistance : Demonstrated in automotive: door rail, spline shaft, much better than epoxy, polyester
• Toughness and impact resistance : 80% elongation at break, bending of coated pipe is possible
• Chemical and corrosion resistance : Excellent resistance to oil, base, acids, salts
• Weather resistance : Long lifetime under UV exposition
• Process ability : Can be applied by various methods: dipping, spray, minicoat, additives for paints, laser sintering
• Environment friendly : Reduce CO2 emission

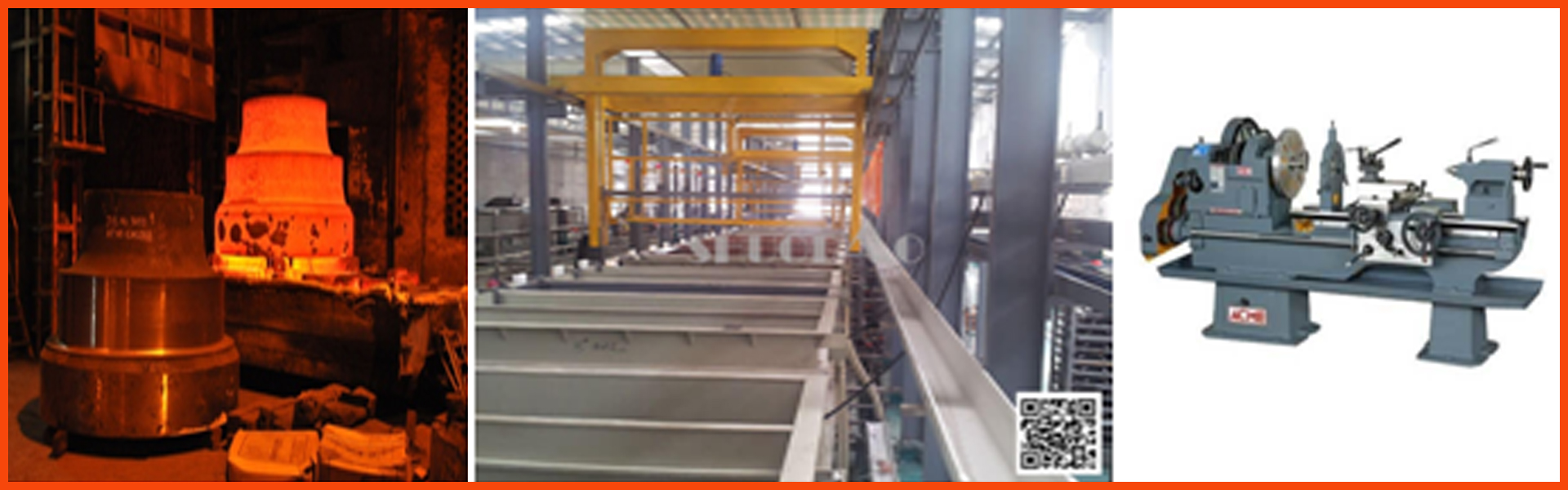

We offer outsourcing the other surface treatment processes like all kind of Electroplating , Heat treatments and Powder coating etc. with your need and precisely fit your specifications and requirements. Machining works also offers outsourcing
